FRITZ!Box 6842 LTE
| BoxMatrix >> Box-Models >> FRITZ!Box 6842 LTE | @ BoxMatrix - IRC-Chat - Translate: de es fr it nl pl |
| News | Selectors | Models | Accessories | Components | Environment | Config | Commands | System | Webif | Software | Develop | Lexicon | Community | Project | Media |
| Supported | FRITZ!Box | Relatives | Telekom | Others | Mesh-Sets | Generations | Moddables | Aliases | Nick-Names | HWR-Names | Vapors | Benchmark |
 Press photo Jan.2012 (C) AVM GmbH |
 Press photo Jan.2012 with 6810 (C) AVM GmbH |
Overview[edit]
The 6842 .....
Note that the information above is merged from all current Firmware versions available for this model, if there are multiples.
For a more detailed per Firmware view see the Firmware-Scans below, and have a look at the Firmware-History.
Characteristics[edit]
- TODO
Modding[edit]
Daily updated index of all FRITZ!Box 6842 LTE firmware modding projects. Last update: 2024-11-16 08:35 GMT.
This list excludes community ripping, code raping, project killing and permanent quarrel and combat enforcing individuals.
BoxMatrix tries to be a service to the community without doing harm to anyone, and not a platform to advertize the opposite.
Mother nature will bill for all time, manpower, projects, fun and passion which was ripped from the community for sick battle.
Let this reaver suck all honest work on this planet and pretend he knew it first. Mother nature will ripp it off his bones.
And if this sick (single sided) perversion continues I have no other option than invoking the police. Please someone stop him.
| Project | Firmwares / Versions (Info) | Home1 | Home2 | git | svn | |
|---|---|---|---|---|---|---|
|
Freetz-org | 6.34.de (untested) | Home1 | Home2 | git | - |
| 1 modding project for this model | ||||||
Legend: = maintained -
= unmaintained - See also the Modding-Selector and Moddable-Models!
Weblinks[edit]
Daily updated index of all FRITZ!Box 6842 LTE websites. Last update: 2024-11-17 04:03 GMT.
| Ctry | Lng | Src | Info | Page title / URL | Date | |
|---|---|---|---|---|---|---|
|
de | de | whmf | Oldwiki page | FRITZ!Box 6842 LTE | 2017-10-17 |
|
|
de | de | AVM | Product homepage | Product homepage 2013-09 | 2013-09-20 |
|
|
de | de | AVM | Product homepage | Product homepage 2016-10 | 2016-10-05 |
|
|
de | de | AVM | Product details | Product details 2016-09 | 2016-09-15 |
|
|
de | de | AVM | Technical data | Technical data 2016-09 | 2016-09-15 |
|
|
at | de | AVM | Product homepage | Product homepage 2014-11 | 2014-11-26 |
| 6 websites for this model | ||||||
Legend:
= live URL. -
= hosted here. - = from archive.org. -
= non public. -
= dead link. - Bold = service portal.
Downloads[edit]
Daily updated index of all FRITZ!Box 6842 LTE downloads. Last update: 2024-11-17 05:00 GMT.
| Ctry | Lng | Ann | Src | Info / Scan results | Size | MD5 / URL / Hover for filename! | Date / GMT | |
|---|---|---|---|---|---|---|---|---|
|
|
int | en | AVM | PDF CE declaration | 146k | cdb6da2f9fecb120db674fcd2c05eb5f | 2016-11-18 14:36 | |
|
|
de | de | AVM | PDF manual | 2.5M | a19643a6b559b958b829ac2faf310bef | 2017-09-19 12:23 | |
|
|
de | de | Icecat | PDF manual | 2.5M | a19643a6b559b958b829ac2faf310bef | 2022-05-16 14:00 | |
|
|
de | de | AVM | PDF quick guide | 2.6M | f4a842335ee855e7abf9fdcea5e6d131 | 2017-09-19 12:23 | |
|
|
de | de | ' | AVM | Firmware 123.06.35 | 15.7M | 9dfb4c5b35459526708a7b5d89569c0d | 2023-09-07 18:29 |
|
|
de | de | AVM | Firmware info (de) | 33.4k | ab90d0fcc6c9b2326bdee8c78e93b62e | 2023-09-12 17:31 | |
|
|
de | de | AVM | Recovery 6.35 | 15.3M | ea869fc886940448719d874e2f85572f | 2023-09-14 14:35 | |
|
|
de | de | AVM | Recovery info (de) | 1.9k | bab23447ca915bb988439b3ed1fbce01 | 2023-09-12 17:34 | |
|
|
AVM | Source code 06.21 | 423M | 1589b17fd2979281137ffd62bef195cb | 2017-12-04 15:58 | |||
| 9 downloads for this model | ||||||||
Legend: = live URL. - = hosted here. - = from archive.org. - = non public. - = dead link. - Bold = latest firmware.
Firmware-Scans[edit]
Daily updated scans of the latest firmware for the FRITZ!Box 6842 LTE. Last update: 2024-11-17 05:08 GMT.
Note that models with multiple Linux instances have multiple scan results per firmware labeled main/scrpn/boot/arm/prx/atom.
All dates have been converted to GMT.
| Target: | Firmware 123.06.35 - Ctry: de - Lang: de - Rel: 123.06.35 - Checkp: 38809 |
| FwImg: | FRITZ.Box_6842_LTE.123.06.35.image - 15.7M - 2023-09-06 19:07 |
| FwImg: | Layout: hroot - Kernel: 14.8M - MD5: 9dfb4c5b35459526708a7b5d89569c0d |
| Kernel: | - Compr: - GCC: - Date: |
| Filesys: | sqfsbe 3:76 - Compr: lzma - BlkSize: - Inodes: - Date: 1970-01-01 00:00 |
| System: | uClibc - BusyBox - Date: - Annex: - Default: |
| Bloader: | - |
| InstType: | mips74_16MB_lte_dect446_3eth_1geth_1ab_1usb_host_wlan11n_39139 |
| ProdName: | |
| ProductID: | - Brandings: - Languages: de |
| Countries: | |
| Providers: | |
| VoipProv: | |
| Strings: | ' |
| Listings: | Image, Config |
Source-Scans[edit]
Daily updated index of all scanned FRITZ!Box 6842 LTE tarballs, most of which are online. Last update: 2024-11-16 05:53 GMT.
The (main/scrpn/boot/arm/prx/atom/rtl) label in the Model column shows which CPU is meant for Multi-Linux models.
The Ver column shows the Firmware-Version derived from the tarball's filename, or 00.00 if not detectable.
There's no way to find this number in the source. Click the version number to get a listing of the entire tarball.
The Kern column shows the Kernel-Version from the kernel Makefile, click it to get a listing of the kernel source.
The BB column shows the BusyBox-Version from various scan sources, click it for listing the busybox addons.
The Libc and LcVer columns show the Libc-Library and its version where it could be detected, which is complicated, no listings yet.
The CC column shows the GCC-Version from its root Makefile, click it for a listing of the gcc source in the tarball.
The BR column shows the Buildroot-Version if detectable, click it for a listing of its source in the GCC tarball.
The Date column shows the date of the newest contained file. By default this list is reverse sorted by this date.
This is no perfect method, since AVM sometimes repackages older tarballs. No better method has been found so far.
| Model | Ver | Kern | BB | Libc | LcVer | CC | BR | Size | MD5 / URL / Hover for filename! | Date | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
FRITZ!Box 6842 LTE | 06.21 | 2.6.32.61 | 1.20.2 | uClibc | 0.9.33.2 | 4.8.1 | 2013.05 | 423M | 1589b17fd2979281137ffd62bef195cb | 2015-03-24 12:29 |
| 1 scanned tarballs | |||||||||||
Legend: = live URL. - = hosted here. - = from archive.org. - = non public. - = dead link.
Part-Numbers[edit]
Daily updated index of FRITZ!Box 6842 LTE part numbers. Last update: 2024-11-17 04:30 GMT. Click an EAN/GTIN or MPN to search the web for it.
If you know any part numbers not listed here yet, expecially OEM and country specific versions, then please get in touch.
| Ctry | Lng | Ann | Colr | Vnd | MPNs | EANs/GTINs | Markets | Icecat data sheet / URL | Added | EOM | EOS | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
de | de | none | red | AVM | 20002597 | 4023125025976 | at, be, de, dk, hu, lu, nl, pt, ww | FRITZ!Box 6842 LTE, DE | 2013-02-28 | 2017-02-15 | 2017-03-31 |
| 1 part number for this model | |||||||||||||
Legend:
= supported - = EOS - = still sold -
= not sold any more - Bold = maintained Icecat entry - Italic = logistic entry without datasheet
Accessories[edit]
Power-Supply: Selectors >> PSU-Selector >> FRITZ!Box 6842 LTE - Showing recommended Power-Supply units.
| PSU-Selector | Type | L. | Min | Max | In | Min | Max | Max | Max | Out | Out | Curr | Pwr | Out2 | Out2 | Curr2 | Pwr2 | Cap. | Vend. | Nick | Alias | Manuf | Model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 311P0W095 | switch | ext | AC | 12 V | DC | 0 mA | 0 VA | AVM | 3p095 | 311POW095 | |||||||||||||
| 1 power supply unit | |||||||||||||||||||||||
Cables+Adapters: Selectors >> Cable+Adapter-Selector >> FRITZ!Box 6842 LTE - Showing recommended Cables+Adapters.
| Cable+Adapter-Selector | Type | Length | Wires | Shield | Conn1 | Gender | Conn2 | Gender | Conn3 | Gender | Conn4 | Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cat5e Patch-Cable | LAN-Cable | 1.5 m | 8 | true | RJ-45 | male | RJ-45 | male | ||||
| Standard USB-Cable | USB-Cable | 2 m | 4 | true | USB-B | male | USB-A | male | ||||
| Single TAE-Adapter | Phone-Adapter | 0.15 m | 2 | RJ-11 | male | TAE-U | female | |||||
| Dual TAE-Adapter | Phone-Adapter | 0.15 m | 2 | RJ-11 | male | TAE-F | female | TAE-N | female | |||
| 4 cables and adapters | ||||||||||||
Gallery[edit]
If you want to extend the gallery with own work then please get in touch. See also the Photography-Inspiration article.
Press photo (C) AVM
Press photo (C) AVM
Front view
Front view
Front view
Front view
With 6810 (right)
With 6810 (right)
With 6810 (left)
With 6810 (right)
With 6810 (right)
With 6810 (right)
With 6810 (right)
With outdoor antenna
With outdoor antenna
With FRITZ!Fon
With FRITZ!Fon
Side view with 6810
Bottom view
Bottom view
Connections
Connections
Connections
Connections
Connections
Connections
Connections
Connections
Connections
Connections
Connections
Connections
Connections
Connections
Connections
Connections
Connections
Connections
Connections
With 6810 (bottom)
With 6810 (bottom)
With 6810 (bottom)
With 6810 (bottom)
With 6810 (right)
With 6810 (right)
With 6810 (right)
With 6810 (right)
With 6810 (right)
With 6810 (right)
SIM card clot
SIM card clot
SIM card clot
SIM card clot
SIM card clot
SIM card clot
SIM card clot
SIM card clot
SIM cards
SIM cards
SIM cards
Accessorues
LTE SMA connetor
LTE SMA connetor
LTE SMA connetor
LTE SMA connetor
LTE SMA connetor
LTE SMA connetor
LTE SMA connetor
LTE SMA connetor
LTE SMA connetor
AVM LTE antennas
AVM LTE antennas
AVM LTE antennas
AVM LTE antennas
Outdoor LTE antenna
Outdoor LTE antenna
Outdoor LTE antenna
Outdoor LTE antenna

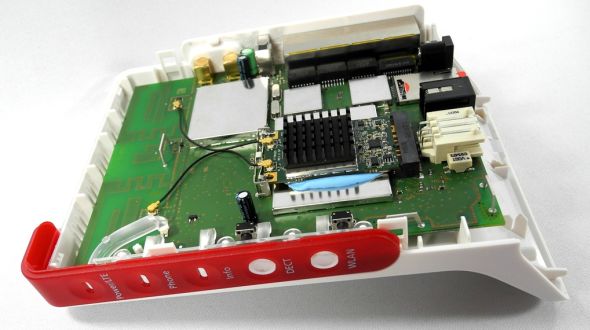

PCB in casing
PCB in casing
PCB in casing
PCB in casing
PCB in casing
PCB in casing
PCB in casing
PCB in casing
PCB in casing
PCB in casing
TAE connector
TAE + WLAN antenna
TAE + WLAN antenna
WLAN antennas
WLAN antennas
WLAN antenna
DECT antenna
DECT antenna
DECT antennas
DECT antennas
DECT antennas
DECT antenna
DECT antenna
TAE + SIM slot
SIM slot
SIM slot
SIM slot
SIM slot
LTE modem
LTE modem
LTE modem
LTE modem
LTE modem
LTE modem
LTE modem
LTE wiring
LTE wiring
LTE wiring
LTE wiring
LTE wiring
LTE wiring
LTE wiring
LTE wiring
LTE wiring
LTE antenna
LTE antenna
IPEX connector
LTE SMA comectors
LTE SMA comectors
LTE SMA comectors
LTE SMA comectors
LTE SMA comectors
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
Webinterface
A lores image of the PCB could be found here.
Versions[edit]
The Versions section intends to compare different hardware revisions of a device.
If you could provide images of a revision not listet here yet then please get in touch.
- TODO
Interfaces[edit]
Front side:
- Power/LTE - LED (gn)
- Phone - LED (gn)
- Info - LED (gn/rd)
- DECT - DECT-Button - to connect to DECT, etc - integrated DECT - LED (gn)
- WLAN - WLAN-Button - to enable/disable WLAN - integrated WLAN - LED (gn)
Back side:
- LAN1 - RJ-45 - Ethernet 10/100/1000MBit - to connect a Cat5e Patch-Cable
- LAN2 - RJ-45 - Ethernet 10/100MBit - to connect a Cat5e Patch-Cable
- LAN3 - RJ-45 - Ethernet 10/100MBit - to connect a Cat5e Patch-Cable
- LAN4 - RJ-45 - Ethernet 10/100MBit - to connect a Cat5e Patch-Cable
- USB - USB-A - USB-Host 2.0 - to connect storage, etc
- LTE-Antenna - SMA - to connect an indoor or outdoor LTE-Antenna
- LTE-Antenna - SMA - to connect an indoor or outdoor LTE-Antenna
Bottom side:
- FON1 - TAE - Analog-Phone 1 - to connect a phone (Germany only)
- FON1 - RJ-11 - Analog-Phone 1 - to connect a phone or a Dual TAE-Adapter or Single TAE-Adapter (Germany only)
- SIM-Slot - to insert a SIM-Card
- Power - Coax-Power 12V DC, 00VA - to connect one of the compatible Power-Supplies: 311P0W095
Internal:
- RS232 - 4-pin 2.54mm pitch Serial Console 3.3 V - drilled but not equipped
- JTAG - 2x 7-pin 1.27mm pitch JTAG-Interface - PCB bottom side, not drilled
- 2x WLAN - Hirose - connecting 2 Stamped-Metal WLAN 2.4GHz antennas
- 1x DECT - directly connecting 1 Stamped-Metal DECT 1.9GHz antenna
- 1x DECT - directly connecting 1 PCB-Trace DECT 1.9GHz antenna
- 2x LTE - IPEX - connecting 2 PCB-Trace LTE antennas using 2 IPEX-Cables - switchable to external SMA
- Mini-PCIe - internal Mini-PCIe slot - homing the Intel XMM7160 LTE Modem[3][4]
Casing[edit]
Details about the FRITZ!Box 6842 LTE casing:
| Group: | 6842-Casing <-- Disassembly instructions will be collected there. |
| Dimensions: | 184 x 136 x 88 mm |
| Screws: | 4 |
| Orient: | V |
| Wallmount: | no |
| Drilling: | - |
| Designer: | Constin - 2018[5] |
Hardware[edit]
Selectors >> Components-Selector >> FRITZ!Box 6842 LTE - Chips may occur multiple times if different types were found in probes.
| Cat. | Qty. | Component | Purpose | Family | Coden. | Vendor | Description |
|---|---|---|---|---|---|---|---|
| RAM | 1x | W9751G6KB-25 | DDR2RAM | DDR2-64M | Winbond | DDR2-800 SDRAM, 8M x 16bit x 4 Banks = 64MB | |
| WLAN | 1x | AR9344-DC3A | WLAN-SoC | Wasp | Qualcomm | 802.11 a/b/g/n MAC/Baseband/Radio 2x2 2.4/5GHz (560MHz MIPS32 74Kc WiSoC) | |
| LAN | 1x | AR8035-A | ETH-PHY | Arctic | Qualcomm | 1-port 10/100/1000 Mbit/s PHY | |
| Trafo | 1x | LFE9120-R | ETH-PHY | Delta | 1000 MBit/s Ethernet Transformer | ||
| Trafo | 3x | LFE8505 | ETH-PHY | Delta | 100 MBit/s Ethernet Transformer | ||
| Trafo | 1x | VOGT-5472 | FON-PHY | Sumida | Common Mode Choke / Data Line Filter | ||
| Misc | 1x | T77W320-R0-GP | LTE-Modem | FourGee | Foxconn | LTE-Modem Reference Design by Altair, Mini-PCIe Version | |
| Misc | 1x | ALT6202-Q1 | LTE-Transcv | FourGee | FourGee-6202 | Altair | LTE FDD & TDD MIMO transceiver, 400-2700 MHz |
Environment[edit]
If you have further/better environment samples or Supportdata-Probes then please get in touch. Thanks!
Annex: no - Language: de - Country: de
HWRevision: 195 HWSubRevision: 3 ProductID: Fritz_Box_HW195 SerialNumber: 0000000000000000 annex: Ohne autoload: yes bootloaderVersion: 1.1970 bootserport: tty0 cpufrequency: 560000000 firstfreeaddress: 0x810FD868 firmware_info: 123.06.21 firmware_version: avm flashsize: nor_size=0x0 sflash_size=16MB nand_size=0MB maca: 34:31:C4:* macb: 34:31:C4:* macwlan: 34:31:C4:* macdsl: 34:31:C4:* memsize: 0x08000000 modetty0: 38400,n,8,1,hw modetty1: 38400,n,8,1,hw mtd0: 0x9F000000,0x9F000000 mtd1: 0x9F020000,0x9FF00000 mtd2: 0x9F000000,0x9F020000 mtd3: 0x9FF00000,0x9FF80000 mtd4: 0x9FF80000,0xA0000000 my_ipaddress: 192.168.178.1 prompt: Eva_AVM req_fullrate_freq: 225000000 sysfrequency: 225000000 urlader-version: 2970 usb_board_mac: 34:31:C4:* usb_device_id: 0x0000 usb_device_name: USB DSL Device usb_manufacturer_name: AVM usb_revision_id: 0x0000 usb_rndis_mac: 34:31:C4:* wlan_key: 1234567890123456
Optional:
crash: 0x0,0x0,0x1;0x0,0x0,0x1;0x0,0x0,0x1;0x0,
References
- ↑ Zahlreiche Neuheiten zur Cebit 2012 - Premiere für neue LTE FRITZ!Box
- ↑ Neue FRITZ!Box 6842 LTE mit Tri-Band für Surfen und Telefonieren in allen deutschen LTE-Netzen
- ↑ Intel Talks about Multimode LTE Modems - XMM7160 and Beyond
- ↑ Intel XMM7160 LTE Modem Demonstrated on Live Network
- ↑ Constin Design Portfolio: Fritz!Repeater 3000
